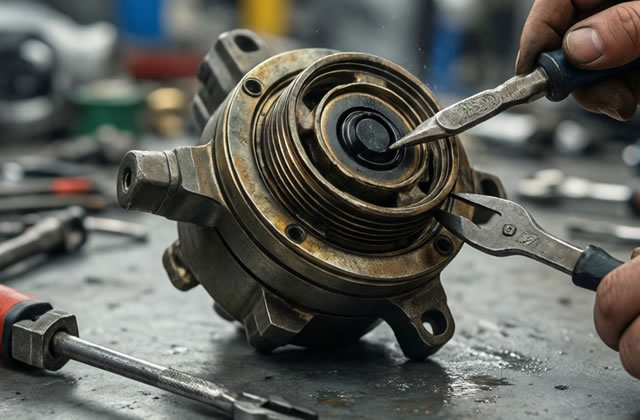

MWM Oil Pressure Sensor: Complete Maintenance, Inspection & Repair Manual

1. Introduction to MWM Oil Pressure Sensor

The MWM oil pressure sensor is a critical component for MWM diesel engines, widely used in generator sets, industrial machinery, marine equipment, and heavy-duty vehicles. Its core function is to monitor the engine’s oil pressure in real time, transmit accurate pressure data to the engine control unit (ECU) and dashboard gauge, and trigger an alarm or automatic shutdown if oil pressure is abnormal to prevent engine damage from lubrication failure.

Without proper functioning of the MWM oil pressure sensor, the engine may suffer from severe failures such as bearing wear, piston scuffing, crankshaft damage, and complete engine seizure. Regular maintenance and timely repair of this sensor are essential to ensure engine reliability, extend service life, and reduce operational downtime.

2. Core Functions & Working Principle

2.1 Core Functions

• Real-time monitoring of engine oil pressure (normal operating range: 1.5–5 bar for most MWM engines)
• Transmission of pressure signals to ECU and dashboard for display
• Activation of low oil pressure warning light/buzzer when pressure drops below the threshold
• Triggering engine protection shutdown in extreme low-pressure conditions
• Supporting engine diagnostic systems for fault code reading

2.2 Working Principle

MWM oil pressure sensors use a piezoelectric or strain-gauge sensing element. When engine oil flows into the sensor port, the internal diaphragm deforms under oil pressure, converting mechanical pressure into an electrical signal (voltage/resistance). The ECU processes this signal to calculate real-time oil pressure and execute corresponding protection logic.

3. Common Failure Symptoms of MWM Oil Pressure Sensor

Early detection of sensor failures can prevent catastrophic engine damage. Watch for these warning signs:

1. Faulty gauge readings: Dashboard oil pressure gauge shows 0, fluctuates erratically, or sticks at maximum pressure
2. Warning light activation: Low oil pressure warning light stays on even with sufficient oil level and normal pressure
3. Engine abnormal operation: Unnecessary automatic shutdowns, reduced power output, or rough idling
4. Oil leakage: Engine oil seepage around the sensor mounting area
5. Diagnostic trouble codes (DTCs): ECU logs codes related to oil pressure circuit failure or signal abnormality
6. Corrosion/damage: Visible rust, cracked housing, or damaged wiring connector on the sensor

4. Routine Maintenance Schedule & Procedures

Adhere to the following maintenance schedule to keep the MWM oil pressure sensor in optimal condition:

• Daily inspection: Check dashboard oil pressure readings, warning lights, and sensor area for oil leaks
• Monthly maintenance: Inspect wiring harness, connector, and sensor mounting for looseness or damage
• Quarterly maintenance: Clean sensor connector, check signal stability, and verify pressure accuracy
• Annual replacement: Replace the sensor as preventive maintenance (recommended for high-hour engines)

4.1 Step-by-Step Routine Maintenance

1. Visual Inspection: Examine the sensor body for cracks, corrosion, or oil leakage. Check the wiring connector for pin corrosion, water ingress, or loose pins.
2. Connector Cleaning: Disconnect the electrical connector, spray electronic contact cleaner on the pins, and wipe with a clean, dry cloth. Reconnect securely to ensure a tight fit.
3. Mounting Check: Tighten the sensor mounting bolt to the manufacturer’s specified torque (typically 25–30 Nm for MWM sensors) to prevent leaks and signal interference.
4. Signal Verification: Start the engine and monitor oil pressure readings at idle and rated speed. Ensure readings stay within the normal range without fluctuation.
5. Oil Quality Check: Poor-quality or contaminated oil can damage the sensor. Replace engine oil and filter per MWM’s recommended interval to protect the sensor.

5. Detailed Repair & Replacement Guide

If the MWM oil pressure sensor is damaged, faulty, or beyond maintenance, follow this step-by-step repair/replacement process:

5.1 Preparation Tools & Parts

• Genuine MWM oil pressure sensor (matching engine model and part number)
• Torque wrench, socket set, and wrench set
• Electronic contact cleaner, lint-free cloths
• Thread sealant (high-temperature, oil-resistant type)
• Engine oil drain pan (for residual oil collection)
• Diagnostic scan tool (for ECU fault code clearing)

5.2 Step-by-Step Replacement Process

1. Engine Shutdown & Safety Prep: Turn off the engine, disconnect the negative battery terminal, and let the engine cool for at least 30 minutes to avoid hot oil burns.
2. Locate the Sensor: Find the MWM oil pressure sensor, typically mounted on the engine block, oil filter housing, or oil gallery manifold.
3. Disconnect Electrical Connector: Press the release tab on the sensor connector and pull it off gently—do not pull the wiring harness directly.
4. Remove the Old Sensor: Use a wrench to loosen and remove the faulty sensor. Place a drain pan under the mounting port to catch residual engine oil.
5. Clean Mounting Surface: Wipe the engine mounting port with a clean cloth to remove oil, dirt, and old sealant residue.
6. Prepare New Sensor: Apply a thin layer of high-temperature thread sealant to the sensor threads (do not cover the pressure port).
7. Install New Sensor: Hand-tighten the new sensor first, then use a torque wrench to tighten it to the specified MWM torque (25–30 Nm). Over-tightening will crack the sensor housing.
8. Reconnect Wiring: Attach the electrical connector to the new sensor until you hear a click, ensuring a locked connection.
9. Clean Up & Test: Wipe up spilled oil, reconnect the battery, start the engine, and check for leaks. Monitor oil pressure readings for 5–10 minutes to confirm normal operation.
10. Clear Fault Codes: Use a diagnostic scan tool to erase old ECU fault codes related to the oil pressure sensor.

6. Troubleshooting Common Issues

6.1 No Oil Pressure Reading

• Cause: Blown fuse, damaged wiring, faulty sensor, or clogged pressure port
• Solution: Check fuse box, repair wiring, replace sensor, or clean the engine oil gallery port

6.2 Constant Low-Pressure Warning

• Cause: Sensor calibration failure, loose connector, or internal sensor damage
• Solution: Reconnect connector, replace sensor, or perform ECU signal calibration

6.3 Oil Leakage at Sensor Mount

• Cause: Improper torque, missing sealant, or cracked sensor housing
• Solution: Retorque sensor, apply sealant, or replace the faulty sensor

6.4 Erratic Pressure Fluctuations

• Cause: Poor electrical connection, water in connector, or failing sensing element
• Solution: Clean connector, dry wiring, or replace the sensor

7. Long-Term Care & Best Practices

• Use only genuine MWM oil pressure sensors—aftermarket sensors may cause signal errors and engine damage
• Replace engine oil and filter every 250–500 operating hours (per MWM guidelines) to prevent sensor clogging
• Protect the sensor connector from water, dust, and chemical contamination with a protective cap if unused
• Avoid pressure washing the sensor and wiring directly to prevent water ingress
• Record sensor replacement dates and operating hours for proactive maintenance planning
• Train operators to recognize abnormal oil pressure readings and shut down the engine immediately if warnings appear

8. Conclusion

The MWM oil pressure sensor is a small but vital component that safeguards the entire engine from lubrication-related failures. Consistent routine maintenance, timely troubleshooting, and proper replacement are critical to ensuring the reliability, efficiency, and longevity of MWM diesel engines.

By following this comprehensive guide, technicians and operators can minimize sensor failures, reduce maintenance costs, avoid unexpected downtime, and protect valuable engine assets. Always prioritize genuine parts and adherence to MWM’s official specifications for optimal performance.
