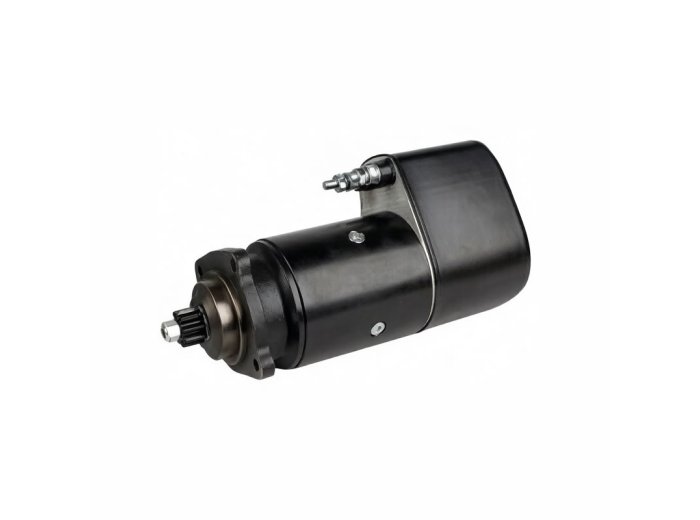

Premium 24V 5.4kW OEM Starter Motor for MWM TCG 2016 & TBG 616 V8 (Replaces 12343770 / Bosch 0001416013)

SKU: mwm12343770
In Stock
Brand: XBAZA
Premium 24V 5.4kW OEM Starter Motor for MWM TCG 2016 & TBG 616 V8 (Replaces 12343770 / Bosch 0001416013)
Qty piece
1+ $191.00
100+ $185.00

Premium OEM Starter Motor (24V / 5.4 kW)

Ensure dependable, heavy-duty ignition for your industrial gas engines with this high-quality OEM Starter Motor. Specifically designed to replace legacy XBAZA and MWM 12343770 components, this starter delivers maximum cranking torque, excellent thermal stability, and reliable performance under demanding operations.

Engine Applications

  • MWM: TCG 2016 Series
  • MWM / DEUTZ: TBG 616 V8

Technical Data & Specifications

Type / Designation616/12 | KB (R) 24V / 5,4 kW
System Voltage24 V
Starting Capacity5.40 kW
Number of Pinion Teeth9
Counter Bore89 mm
Fastening Pattern11.5 / 11.5 / 11.5

Primary Cross-References

  • MWM: 12343770 | 1234-3770 | 1234 3770 | 01178720 | 605720100076 | 623200700047
  • Bosch: 0001416013 | 0 001 416 013
  • KHD Deutz: 01178720 | 0117-8720 | 01173059 | 01287142

Comprehensive Interchange / Compatibility List

This heavy-duty starter perfectly interchanges with the following manufacturer part numbers:

Bosch: 0001402001, 0001402011, 0001402043, 0001402058, 0001402059, 0001402079, 0001410029, 0001410030, 0001414011, 0001414017, 0001414018, 0001415010, 0001416017, 0001416027, 0001416028, 0001416059, BNG4/24AR9Z9, BNG4/24CR9Z9BR, BNG4/24CRS165BR
Delco / Remy: drs1550, 19024578, IM131, IM16/1, IM21-5/24, IM321, IM513
Iskra / Letrika: 10.130.121, 11.130.005, 11.139.034, azk5113, azk5117, AZK5193, is0005, is0655, IS9051
MAN: 51.26201.7013, 51.26201.7014
Volvo: 240502, 241011, 4772059, 5001682
Steyr: 61500090030, 61500090022, 614090022, 609090010, 41000090002
Other Brands: Case IH 161500090030, Fiat 82224044, Renault 0025841025, Magneton 9124340, Elstock 45-0128, Wood-UK STR5013
