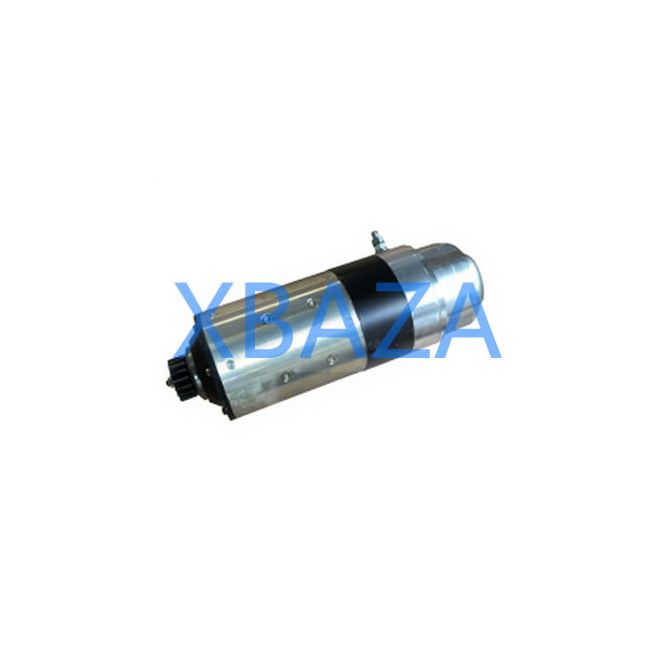

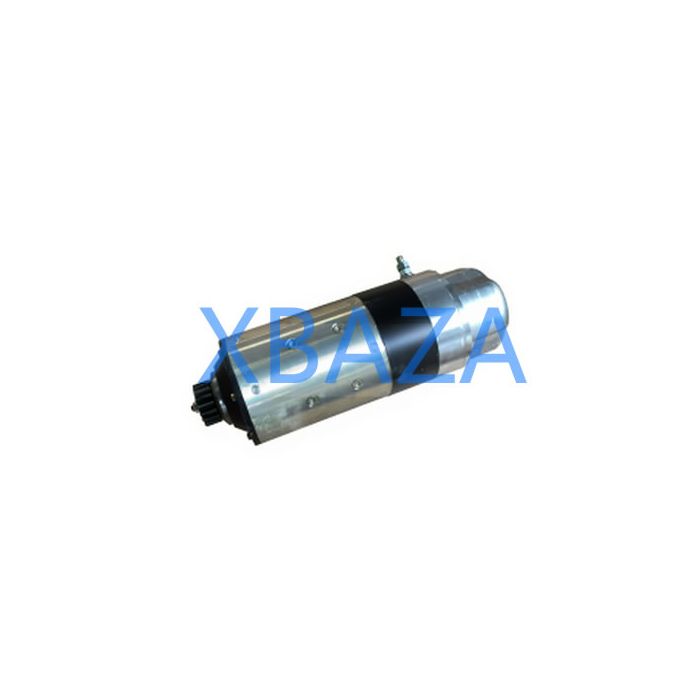

Starter BOSCH/SEG 0001601007

High quality starter BOSCH 0001601007 fitting MWM 12041402.
Suitable for engines DEUTZ / MWM / Caterpillar Energy Solutions type TBG 620, TGB 620K and TCG 2020, TCG 2020K.

NOTE, Starters 0001601007 and 0001601091 are technically the same, different is the 0001601028, which is 20mm shorter and has 2 thermal switches.

Technical information:

Type formula: TB ( R ) 24V 15.0 KW
Type formula (old): AL/FTB 15/24 R 6 SR
Voltage (V ): 24, B+ Connection
Start power (kW) : 15.0
Number of teeth pinion : 17
One-pass (mm): 90
Fixing : saddle
Direction of rotation: clockwise rotation
Length (unpacked): 555.00 mm
Width (unpacked): 178.00 mm
Height (unpacked): 221.00 mm
Starter version: free ejecting

Cross-Referenzen:

BOSCH:
0001601007 / 0001 601 007 / 0001-601-007 (length 550mm) No thermal switch
0001601091 / 0001 601 091 / 0001-601-091 (length 550mm) No thermal switch
0001601028 / 0001 601 028 / 0001-601-028 (length 530mm) With thermal switch
MWM:
12041402 / 1204-1402 / 1204 1402
01301737 / 0130-1737 / 0130 1737
305720100016 / 3-0572-01-0-0016 / 3 0572 01 0 0016
KHD:
1301737 / 130 1737 / 130-1737
2041402 / 204 1402 / 204-1402
01301737 / 0130 1737 / 0130-1737
12041402 / 1204 1402 / 1204-1402
02041402 / 0204 1402 / 0204-1402
MAN:
11170012008 / 11 17001 2008 / 11-17001-2008
MTU:
1117001200/8 / 111 700 12 00/8 / 111-700-12-00/8
