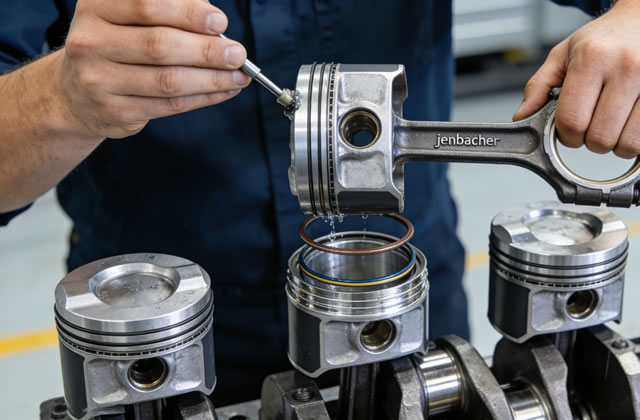

Maintenance Common Sense of Jenbacher Generator Pistons

The piston is one of the core components of Jenbacher gas generator engines, responsible for converting the pressure generated by gas combustion into mechanical energy, which drives the generator to generate electricity. As a key moving part operating in high-temperature, high-pressure, and high-friction environments, the piston’s performance and service life directly affect the overall efficiency, stability, and safety of the Jenbacher generator. Proper and regular maintenance of pistons is essential to prevent premature wear, reduce engine failures, and extend the generator’s service life. This article details the key points of Jenbacher generator piston maintenance, including inspection, cleaning, wear judgment, replacement, and safety precautions, which can be directly copied and applied in daily maintenance work.

1. Regular Inspection: Timely Detect Potential Hidden Dangers

Regular inspection is the foundation of piston maintenance, which can help detect wear, deformation, or damage in advance and avoid serious engine failures. The inspection cycle should strictly follow Jenbacher’s official maintenance manual, generally every 5,000 to 8,000 operating hours. For generators operating in harsh conditions (such as high dust, unstable gas quality, or frequent load changes), the inspection cycle should be shortened to 3,000 to 5,000 operating hours.

Key inspection items and methods:

Visual Inspection: After disassembling the engine cylinder head, carefully check the piston’s top, skirt, and ring grooves. Focus on whether there are cracks, scratches, ablation, or carbon deposits on the piston top; whether the piston skirt is worn, deformed, or has scuffing marks; and whether the ring grooves are worn, deformed, or have carbon deposits. Carbon deposits on the piston top are normal to a certain extent, but excessive deposits may indicate incomplete combustion, which needs to be addressed in a timely manner.
Dimension Measurement: Use professional measuring tools (such as a micrometer and vernier caliper) to measure the piston’s key dimensions, including the piston diameter (at the top, middle, and bottom of the skirt), the width of the ring grooves, and the clearance between the piston and the cylinder liner. All measured values must comply with Jenbacher’s official specifications. If the piston diameter is too small (exceeding the wear limit) or the ring groove width is too large, the piston should be replaced.
Piston Ring Inspection: While inspecting the piston, check the matching piston rings (compression rings and oil rings). Check for wear, deformation, or breakage of the piston rings, and measure the end gap, side gap, and back gap of the rings. If the gaps exceed the specified range or the rings are damaged, replace the piston rings together with the piston if necessary.
Sealing Performance Check: After assembling the piston and piston rings, conduct a pressure test on the cylinder to check the sealing performance. If there is air leakage, check whether the piston, piston rings, or cylinder liner are worn or damaged, and repair or replace them accordingly.

2. Cleaning: Remove Deposits and Ensure Normal Operation

During the operation of the generator, the piston will inevitably accumulate carbon deposits, oil stains, and other contaminants, which will affect the piston’s heat dissipation, reduce combustion efficiency, and even accelerate piston wear. Therefore, regular cleaning of the piston is an important part of maintenance.

Correct cleaning steps and precautions:

Pre-cleaning Preparation: Before cleaning, remove the piston from the engine, disassemble the piston rings, and place them in a clean container. Avoid mixing parts from different cylinders to prevent incorrect installation later.
Carbon Deposit Removal: Use a professional carbon deposit remover (compatible with Jenbacher engine components) to soak the piston and piston rings. After soaking for the specified time, use a non-metallic brush (such as a brass brush) to gently scrub the carbon deposits on the piston top, skirt, and ring grooves. Avoid using steel wire brushes or sharp tools, as they may scratch the piston surface or damage the ring grooves.
Oil Stain Cleaning: Use a neutral cleaning agent to clean the oil stains on the piston and piston rings, then rinse them with clean water and dry them thoroughly with cold air or a clean cloth. Ensure that no cleaning agent or water remains on the piston surface, as this may cause corrosion or affect the lubrication effect during operation.
Post-cleaning Inspection: After cleaning, re-inspect the piston and piston rings for wear, cracks, or deformation. If any problems are found, handle them in a timely manner before reassembly.

3. Wear Judgment: Determine Whether to Replace the Piston

Pistons have a limited service life, and timely replacement is crucial to avoid engine failures caused by excessive wear. The following are the key criteria for judging piston wear and determining whether replacement is needed:

Wear Limit of Piston Diameter: If the measured piston diameter is smaller than the minimum value specified in Jenbacher’s manual, the piston is excessively worn and must be replaced. Generally, the wear limit of Jenbacher generator pistons is 0.15-0.20 mm (specific values vary by engine model).
Piston Top Damage: If there are cracks, severe ablation, or deep scratches on the piston top that cannot be repaired by cleaning, the piston must be replaced to prevent the cracks from expanding and causing piston fracture during operation.
Piston Skirt Deformation or Scuffing: If the piston skirt is severely deformed, has obvious scuffing marks, or the wear is uneven, it will affect the piston’s movement in the cylinder liner, leading to increased friction and noise. In this case, the piston should be replaced.
Ring Groove Wear: If the ring groove is worn excessively, the piston rings cannot fit tightly, resulting in poor sealing performance, reduced compression ratio, and increased oil consumption. If the ring groove width exceeds the specified limit, the piston must be replaced.
Service Life Expiration: Even if the piston shows no obvious wear, it should be replaced according to Jenbacher’s official service life recommendation. Generally, Jenbacher generator pistons have a service life of 20,000 to 30,000 operating hours (varies by engine model and operating conditions).

4. Replacement: Standard Operation to Ensure Installation Quality

When replacing the piston, it is necessary to strictly follow Jenbacher’s installation specifications to ensure the correctness and reliability of the installation, avoiding problems such as poor sealing or abnormal operation caused by improper installation.

Standard replacement steps:

Preparation Work: Ensure the generator is turned off, the power supply is disconnected, and the engine is fully cooled. Prepare the new piston (Jenbacher OEM parts), piston rings, piston pins, retaining rings, and other related accessories, as well as professional tools (such as a piston ring installer, micrometer, and torque wrench).
Disassembly: Disassemble the engine cylinder head, remove the connecting rod cap, and carefully take out the old piston from the cylinder liner. During disassembly, avoid damaging the cylinder liner, connecting rod, or other components.
Assembly of New Piston:
1. Install the piston pin and retaining rings into the new piston, ensuring that the retaining rings are installed in place to prevent the piston pin from falling out during operation.
2. Install the piston rings into the ring grooves in the correct order (compression rings first, then oil rings) and direction. Use a piston ring installer to avoid damaging the piston rings. Ensure that the end gaps of the piston rings are evenly distributed and within the specified range, and the gaps of adjacent rings are staggered (not in the same direction).
3. Apply a thin layer of engine oil to the piston surface, piston rings, and cylinder liner to reduce friction during initial startup and prevent wear.
Installation: Carefully put the new piston into the cylinder liner, align the piston pin with the connecting rod small end, and install the connecting rod cap. Tighten the connecting rod cap bolts to Jenbacher’s specified torque with a torque wrench, ensuring uniform torque on both sides.
Post-installation Inspection: After installation, manually rotate the crankshaft to check whether the piston moves smoothly in the cylinder liner without jamming or abnormal resistance. Reinstall the cylinder head and other components, and conduct a test run to ensure the generator operates normally.

Special Note: Always use Jenbacher OEM pistons and accessories. Non-OEM parts may not match the engine’s parameters and tolerances, leading to reduced performance, increased wear, and even engine damage, which may void the generator’s warranty.

5. Safety Precautions: Ensure Safe and Effective Maintenance

Piston maintenance involves disassembling and assembling key engine components, which requires strict adherence to safety precautions to avoid personal injury and equipment damage:

Before maintenance, ensure the generator is completely turned off, the power supply is disconnected, and the engine is fully cooled (the surface temperature is below 40℃) to avoid burns and prevent accidental startup of the engine.
Wear professional protective equipment, such as heat-resistant gloves, safety glasses, and work shoes, to prevent injury from sharp edges, high-temperature components, or cleaning agents.
Use professional tools that meet the specifications, and avoid using inferior or inappropriate tools, which may damage the piston, cylinder liner, or other engine components.
During disassembly and assembly, mark the position and direction of each part (such as piston rings, connecting rod caps) to ensure correct reinstallation. Avoid mixing parts from different cylinders.
Keep the maintenance area clean and tidy, and avoid placing tools, parts, or cleaning agents randomly to prevent them from falling into the engine cylinder or other parts, causing equipment failure.
After maintenance, conduct a test run of the generator, monitor its operation status (such as noise, vibration, and exhaust gas), and check for oil leakage, air leakage, or other abnormalities. If any problems are found, stop the machine immediately for inspection and handling.

6. Additional Maintenance Tips

Maintain stable gas quality: Unstable gas quality (such as excessive impurities, high sulfur content) will cause incomplete combustion, increase carbon deposits on the piston, and accelerate piston wear. It is recommended to install a high-quality gas filter and regularly replace the filter element.
Ensure proper lubrication: The engine lubrication system should be maintained regularly, including replacing engine oil and oil filters according to the specified cycle, to ensure that the piston and cylinder liner are fully lubricated, reducing friction and wear.
Avoid overloading operation: Long-term overloading of the generator will increase the load on the piston, leading to high temperature, high pressure, and accelerated wear. It is necessary to operate the generator within the rated load range.
Store spare parts properly: Spare Jenbacher pistons and accessories should be stored in a dry, clean, and cool environment, avoiding moisture, dust, or collision, to ensure they are in good condition when needed.
Use Jenbacher’s professional maintenance services: For complex piston maintenance or engine disassembly, it is recommended to contact Jenbacher’s official after-sales service team to ensure maintenance quality and avoid improper operation causing equipment damage.

In summary, the piston is a key component that determines the performance and service life of Jenbacher gas generators. By following the inspection, cleaning, wear judgment, and replacement guidelines outlined in this article, using genuine OEM parts, and strictly adhering to safety precautions, you can effectively extend the service life of the piston, reduce maintenance costs, and ensure the long-term stable, efficient, and safe operation of your Jenbacher generator. This article can be directly copied and used as a reference for daily maintenance work.
